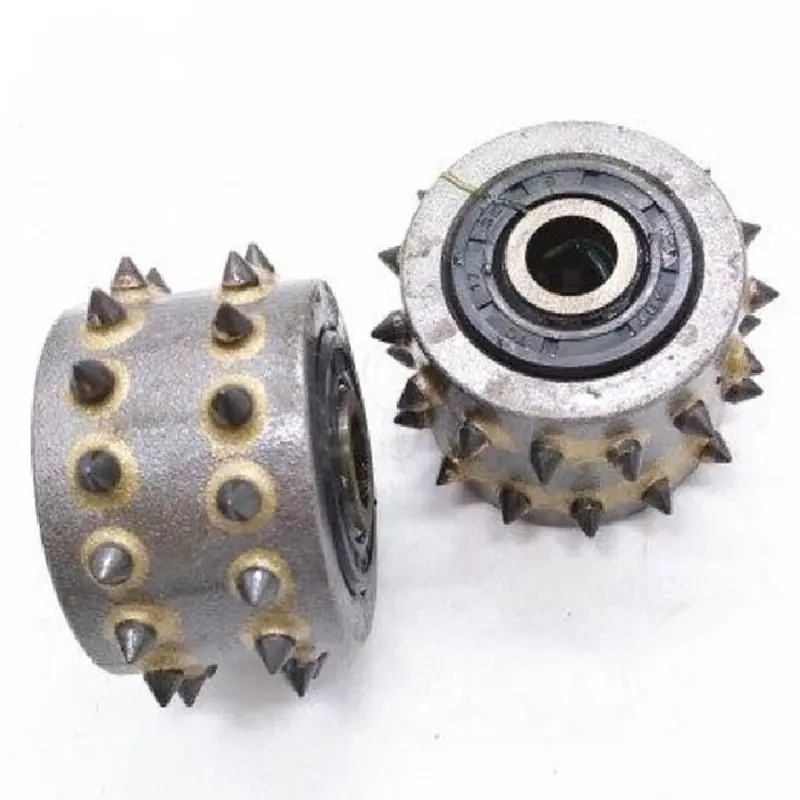

Rhino Bush Hammer
5 in bush hammer tool that fractures the concrete surface to expose aggregate and create heavy texture.
Specifications
- Width
- 5 in
- Type
- Bush hammer tool
- Action
- Fractures the concrete surface rather than abrading it
- Primary use
- Aggregate exposure, slip resistance, opening tight slabs
- SKU
- 1531
Good to know
- Bush hammering is texturing, not stripping. Use PCD for coating and mastic removal, not this.
- Plan a grinding pass afterward unless heavy texture is the finished product. Bush hammer leaves aggressive peaks.
- It changes the floor permanently. Run a test area and get the customer to look at it before you texture a whole slab.
- Confirm fitment against your machine's plate pattern and rotation before ordering.
- Dust from bush hammering is still concrete dust. Run your extraction the same way you would on a grinding pass.
About the Rhino Bush Hammer
A bush hammer does not grind concrete, it fractures it. The 5 inch Rhino bush hammer carries carbide tips that hammer the surface as the head rotates, chipping away the top layer to expose aggregate and leave a deliberately rough texture. It is the tool you reach for when abrasion is not going to get you where you need to go.
There are three jobs it does well. The first is aggregate exposure for decorative and architectural work, where the point is the look of the stone in the slab. The second is slip resistance, on ramps, loading areas, wash-down areas and exterior work where a smooth surface is a liability. The third is opening a very hard, tight, closed slab that diamond tooling is glazing on rather than cutting into, where fracturing the surface gives you something to work with.
What a bush hammer is not is a coating removal tool. If you have epoxy, mastic or glue to strip, PCD tooling is faster, cleaner and cheaper. Bush hammering a coated floor tends to break the coating up into a mess and drive fragments into the surface.
Expect to follow it with a grinding pass on most jobs. The texture a bush hammer leaves is aggressive, and unless heavy texture is the finished product you will want a diamond step afterward to knock the peaks down and bring the surface to the profile the system needs. Confirm fitment against your machine's plate before ordering, and call 817-676-6793 if you want us to spec the follow-up steps with it.
What it is used for
- Exposing aggregate for decorative and architectural concrete
- Creating slip resistance on ramps, docks and wash-down areas
- Opening a hard, closed slab that diamond tooling is glazing on
- Heavy texturing where a rough finished surface is the specification
Questions about this product
What does a bush hammer tool do to concrete?
A bush hammer tool fractures the top layer of a concrete slab with carbide tips rather than abrading it the way diamond tooling does, which chips the surface away to expose aggregate and leave a deliberately rough texture. It is used for decorative exposure, slip resistance and opening very tight slabs.
Can I use a bush hammer to remove epoxy coating?
A bush hammer is the wrong tool for removing epoxy coating, because it breaks the coating into fragments and drives pieces into the surface instead of shearing the material off cleanly. Use PCD tooling for epoxy, mastic, glue and thick sealer removal, which is faster and leaves a cleaner slab.
Do I need to grind after bush hammering?
You do need to grind after bush hammering in most cases, because a bush hammer leaves aggressive peaks and heavy texture, so unless that texture is the finished product the customer bought, a diamond grinding pass has to knock the high points down to the profile your system requires.
When should I choose bush hammering over grinding?
Choose a bush hammer over grinding when you need exposed aggregate, real slip resistance, or when a very hard closed slab is glazing your diamond tooling instead of letting it cut. Choose grinding when you need a controlled, uniform surface profile for a coating or a polished finish.
Will the Rhino bush hammer fit my grinder?
Fitment for bush hammer tooling depends on your machine's plate pattern, mounting and rotation direction, so confirm those against your grinder before ordering rather than assuming a 5 inch tool is universal. Call 817-676-6793 with your machine model and we will confirm before you buy.
